MACHINING

EQUIPMENT CAPABILITIES

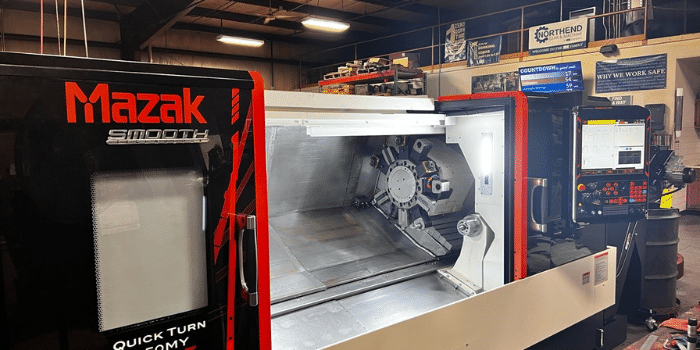

Mazak - Quick Turn Model QT35U CNC Lathe

20″ OD x 60″ lg

Farrel Sykes Herringbone Gear Generator

4’ diameter x 9” hole max double helical; 2dp

Pratt & Whitney - Vertical Shaper

12″ Stroke, 50″ Part, 18″ Tall; Slots/Splines

Bullard Vertical Turret Lathe

56”, 68” swing, 4 position turret & side head

Bullard - 5" Boring, Milling, Drilling Machine

48″ Y, 60″ X Travel

Blanchard - 42” Rotary Surface Grinder
Gray Vertical Lathe

96” swing, 108 U Rails, Ram & turret heads on rail

Monarch Lathe Model 22M

18” swing x 24’ lg

Gould & Eberhardt Gear Hobbers

 72H, 48H, 36H Max 8’ Spur / Helical; 1.5 dp gear

Monarch Lathe

28″ Swing x 48″ lg

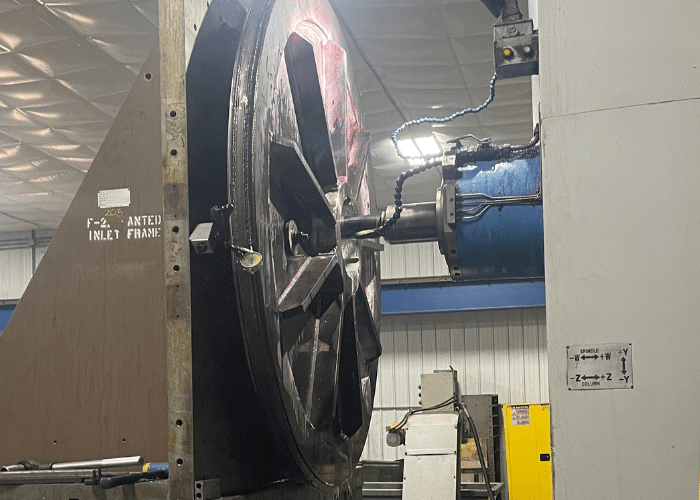

Giddings & Lewis (G&L) H70 Work Center

6” Spindle 24’ X, 12’ Y, 48” Z; 10’x10’ rotary table, 50 ton load

Mazak H25 Horizontal Machining Center

36” x 36” dual pallets

Longem LG2080D Engine Lathe

12” OD x 80” lg

Mazak Vertical Machining Center

108″ X, 30″ Y, 36″ Z

Forest Line Gantry Machining Center

 5 Axis Head, 26’ X, 12’ Y, 5’ Z; 12’ between columns

Tacchi Lathe
53″ Swing Over Bed, 84″ Swing Over Gap; 80″ Gap, 19.5 Ft. Between Centers, 20,000 Lbs. Capacity

Services

Precision Machining

Heavy Repair Machining

Small Batch Production

Reverse Engineering

MACHINE SHOP LOCATIONS

READY TO START YOUR NEXT PROJECT?

MACHINING PROJECTS

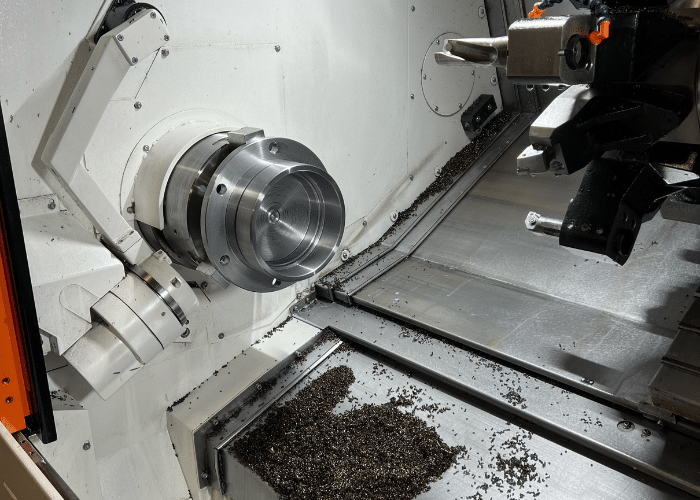

Our machine shop recently completed a high-priority rush order for a customer, involving the production of 4 bearing cartridges. The project consisted of turning, milling,

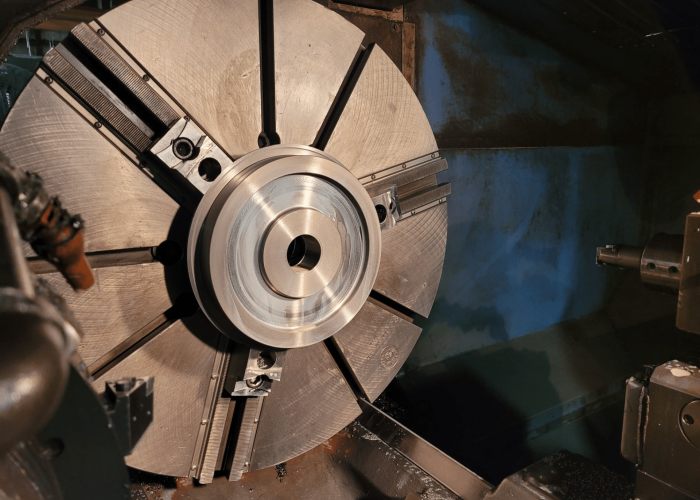

Our Northend Gear & Machine Division operating near Cincinnati, OH completed a bulk order of sheaves for a manufacturing customer. From saw to lathe, see

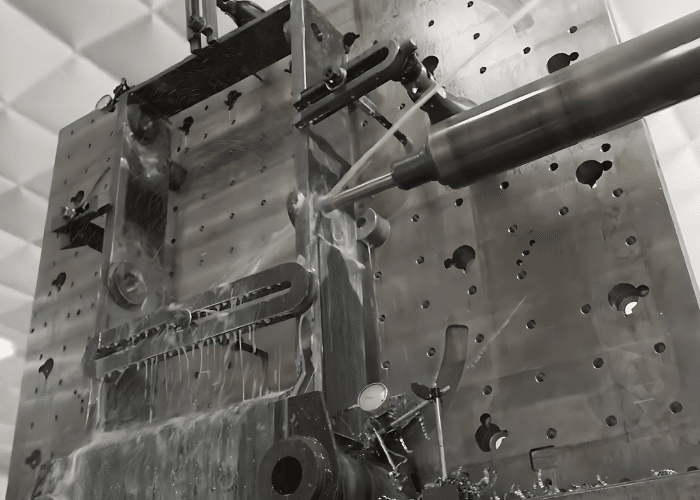

A fabrication customer needed some work done on frame parts for a roller coaster that was going overseas. We milled, drilled and tapped holes into
