3d scanning & design engineering

Engineered for Success

Our skilled engineering and detailing team is dedicated to finding the perfect solution for your requirements, whether it’s within the shop or out in the field. They collaborate closely with you to ensure that every aspect of your project is carefully considered and tailored to meet your needs.

Our Software

  • FabSuite: Project Management
  • SDS/2: Structural steel 3D modeling & detailing

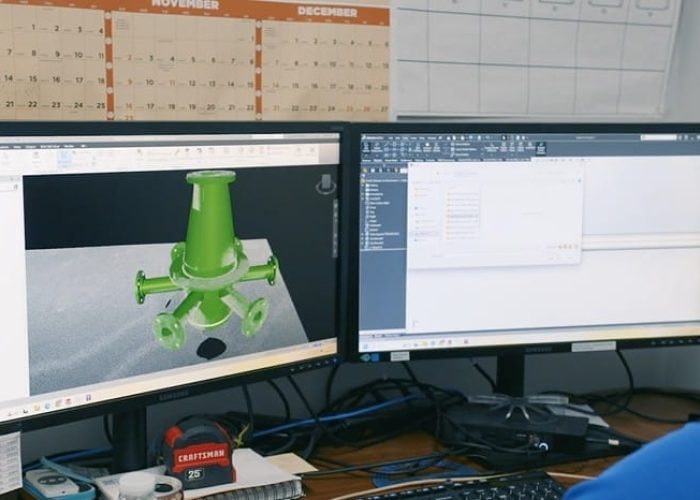

  • Solid Works: 3D solid modeling for mechanical, machining, and custom fabrication
  • FARO Laser Scanner: On-site 3D Measuring for fast, accurate, and high quality results
  • FARO Arm: Captures 3D measurements for quality and inspection checks

our capabilities

Conceptual on site design consulting

Prototyping

Mechanical design & detailing

Value Engineering

Structural design & detailing

Project Management

3D Scanning & Measuring

faro-arm
Capture2
faro-scanner
Untitled design - 2024-06-14T083143.328

Improving Quality & Efficiency with
3D Scanning & Measuring

Advanced Technology

Engineering & Inspection

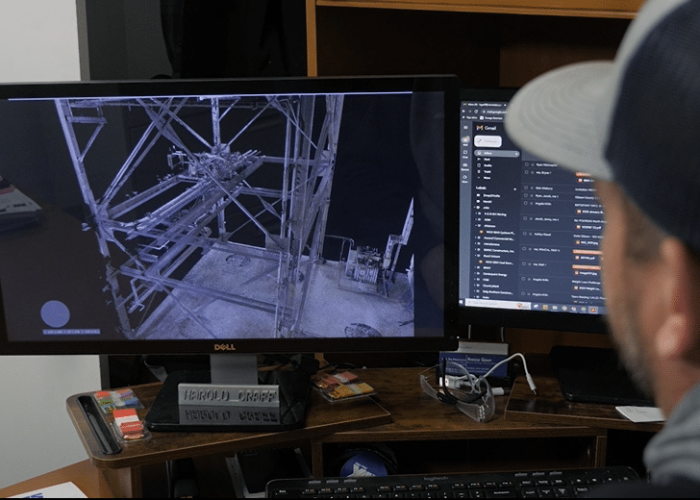

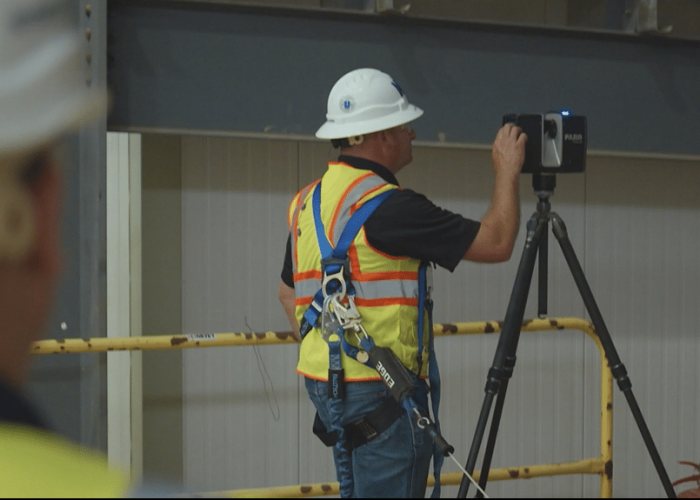

FARO Laser Scanner

On-site 3D Measuring for fast, accurate, and high quality results

image (27)

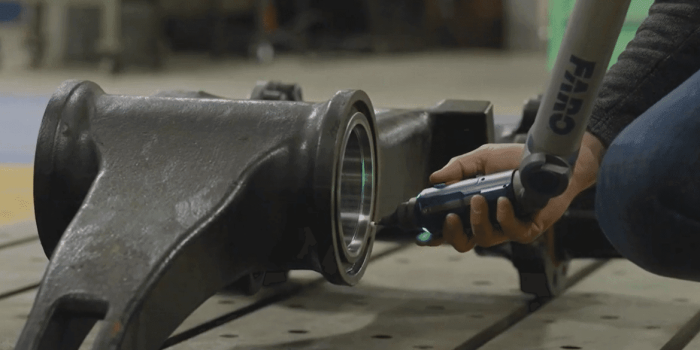

FARO Arm

Captures 3D measurements for quality control and inspection checks

faro-arm

Project Highlights

engineering

This ejector plate came from a high-volume injection molding machine that had been in service for many years. Over time, the guide rod bores wore

Forged for performance. Finished for durability. Overview: We’re working with an industrial manufacturer on their new facility, designing and fabricating platforms, hoppers, and chutes built to

Vertical Mixer

Vertical Mixer Build After reverse engineering an existing vertical mixer, our engineering team modified the design to enhance performance. From there, we handled the entire

Overview An automotive manufacturer in the plastics industry approached us with a safety project involving their newly acquired plastic injection molding press. The customer needed

engineering & detailing offices

READY TO START YOUR NEXT PROJECT?
